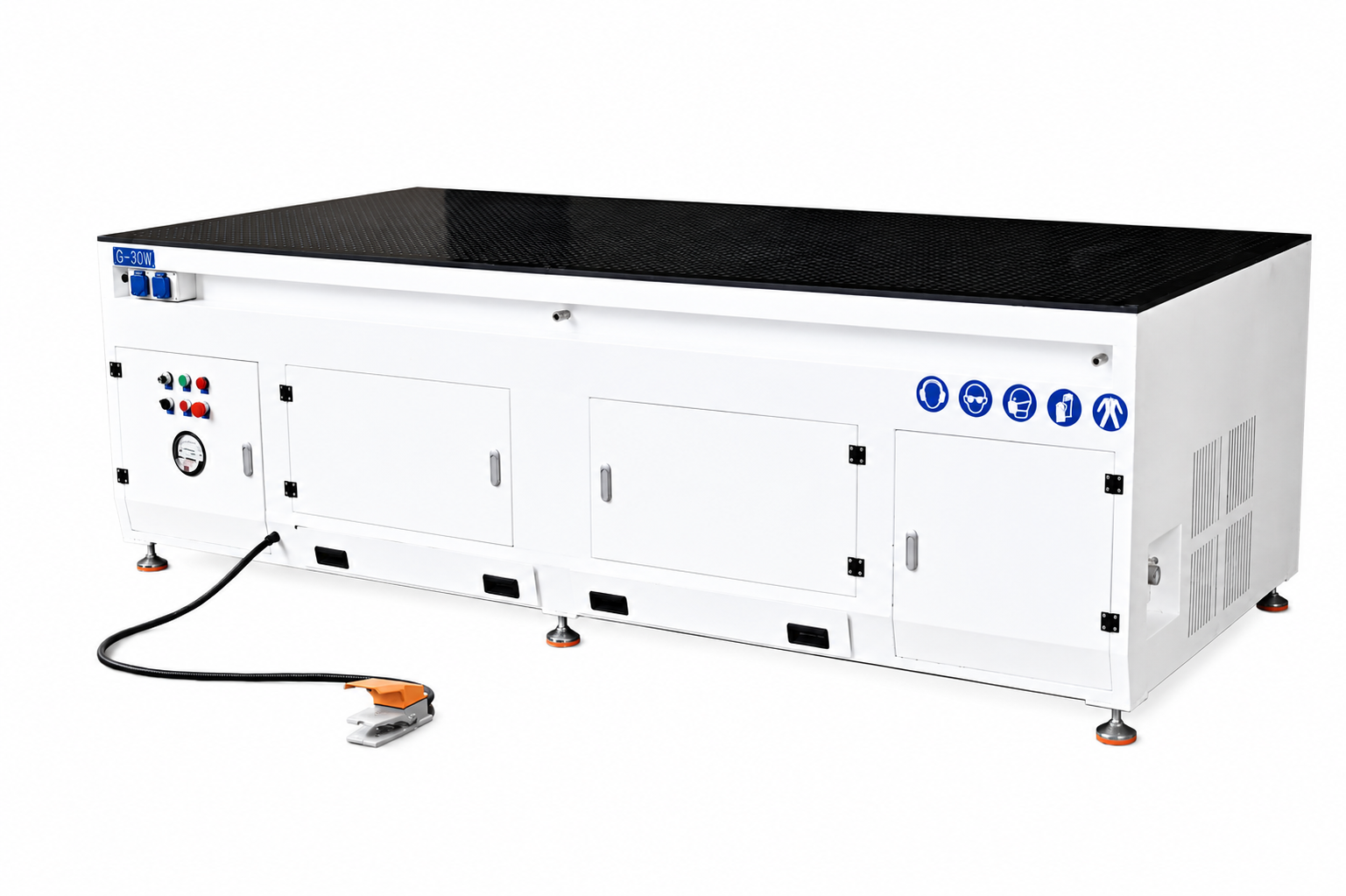

卧式打磨除尘台Horizontal Workbench
大台面卧式设计，适合大件工件水平作业及多人协同。台面密布吸孔，底部强吸力风机布局，全自动脉冲反吹保持持续高效。Large-surface horizontal layout for big workpieces and team work. Dense surface holes, bottom-mounted high-suction fan and fully automatic pulse blowback.
产品视频 · 不同材质打磨实拍Product Video · Grinding across materials
产品参数Specifications

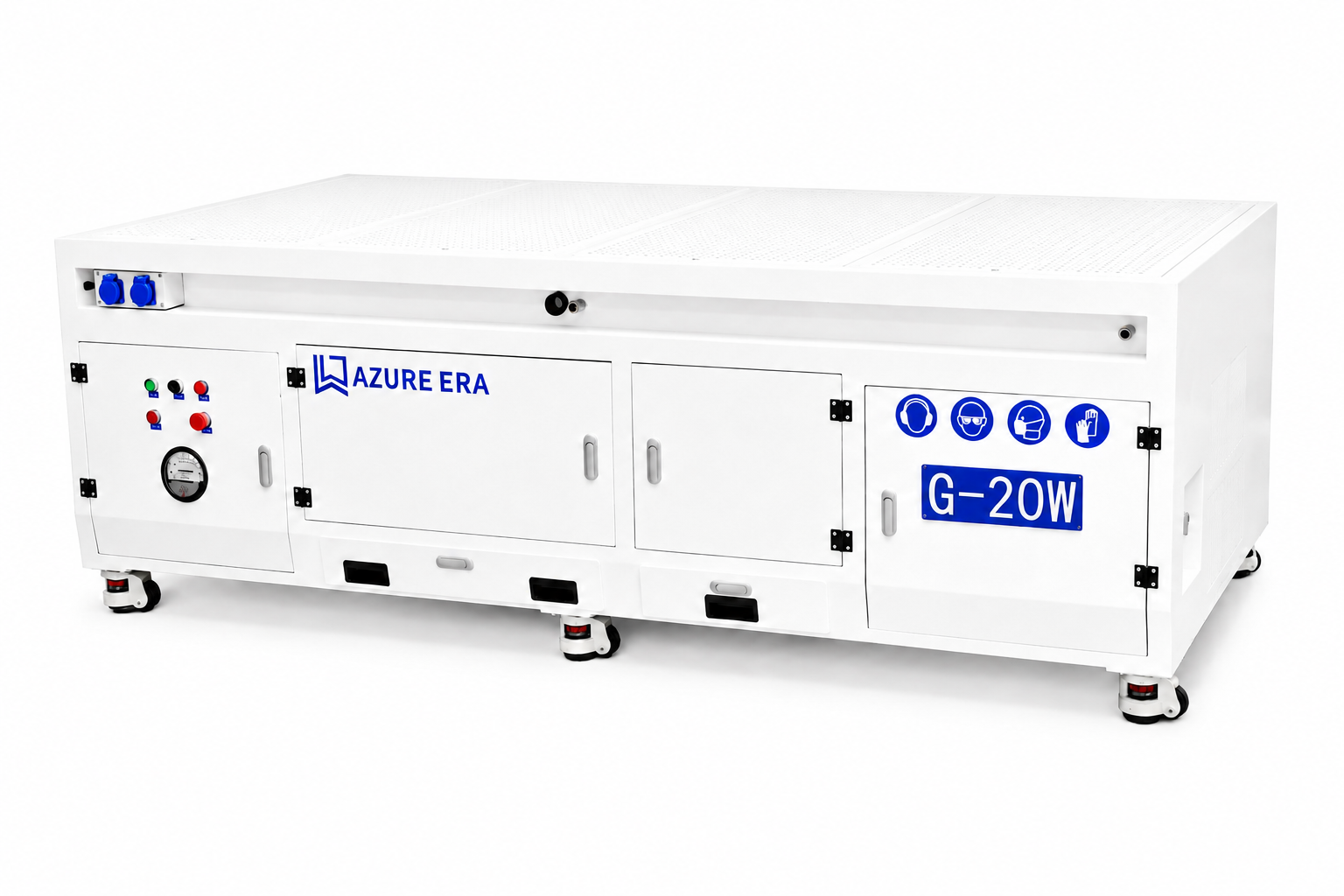

| 型号 / Model | G-20W | G-25W | G-30W |
|---|---|---|---|
| 电机功率Motor | 4 kW | 4 kW | 3.0 kW×2 |
| 电压Voltage | 380V 4PH — 50Hz380V 4PH — 50Hz | ||
| 风量 (m³/h)Airflow | 6600-8000 | 6600-8000 | 7800-9200 |
| 风压 (Pa)Pressure | 2950-2600 | 2950-2600 | 4100-3720 |
| 滤筒数量Filters | 2 | 2 | 4 |
| 噪声Noise | ≤75±5 dB≤75±5 dB | ||
| 重量Weight | 350 kg | 400 kg | 500 kg |
| 台面 (mm)Surface | 1900×870 | 2400×870 | 2900×870 |
| 外形 (mm)Overall | 1050×1100×2200 | 1050×1100×2700 | 1050×1100×3200 |
产品特点Key Features
高效多级过滤Multi-stage Filtration
捕获 0.3μm 以上颗粒，过滤效率高达 99.9%。Captures particles above 0.3μm at up to 99.9% efficiency.
脉冲自清洁Pulse Self-cleaning
智能脉冲反吹定时清理滤芯，持久保持通畅。Smart pulse blowback keeps the filter clear.
低噪声运行Low-noise Operation
优化风机与气流通道，噪声 ≤75±5dB。Optimized fan keeps noise under ≤75±5dB.
防火防爆安全Fire & Ex Safety
火花探测、阻燃滤芯、防爆电机。Spark detection, flame-retardant filter, ex-proof motor.
大容量集尘High-capacity Collection
抽屉 / 集尘斗大容量，清灰快捷无扬尘。Large drawers for fast, dust-free emptying.
坚固工业用料Robust Construction
优质冷轧钢板，钣金工艺考究，经久耐用。Premium cold-rolled steel, precise sheet metal.
应用行业Application Industries
设备细节Engineering Details
电控系统Electrical Control
可编程脉冲控制仪，接线整洁规范。Programmable pulse controller, tidy wiring.
压差监测表Pressure Gauge
实时显示滤筒压差，精准判断清灰时机。Live filter pressure for cleaning timing.
集灰抽屉Collection Drawers
大容量抽拉式集尘屉，清灰无扬尘。Large pull-out drawers, dust-free emptying.
LED 照明LED Lighting
明亮柔和无频闪，防爆外壳。Bright flicker-free LED, ex-proof housing.
福马脚轮Leveling Casters
日本福马脚轮，移动定位自由切换。Japanese Fukuma casters, move or lock.
钣金与合页Sheet Metal
冷轧钢板折弯，重型合页结实耐用。Folded steel with heavy-duty hinges.
一体操作面板Control Panel
电机/清灰/照明一键启停。Motor/cleaning/light one-touch.
PTFE 滤芯PTFE Cartridge
东丽覆膜，光滑不粘粉易清灰。Toray-coated, non-stick, easy clean.
