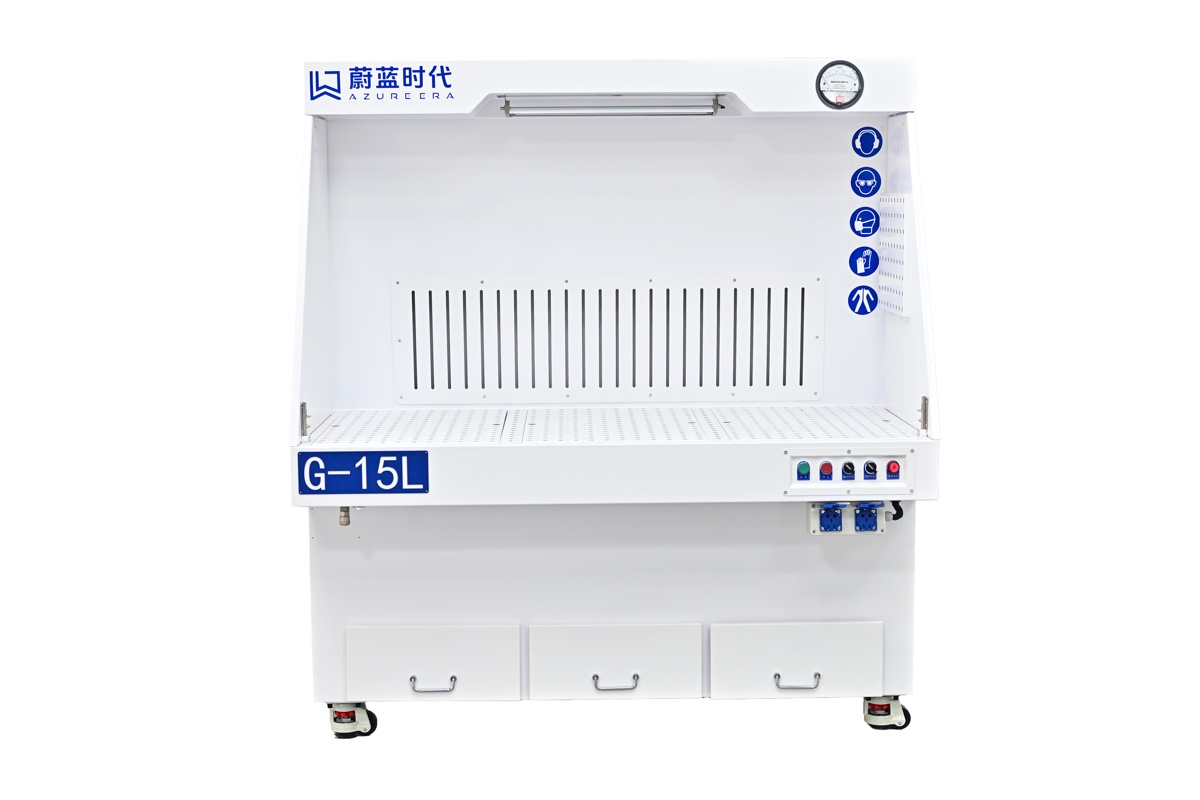

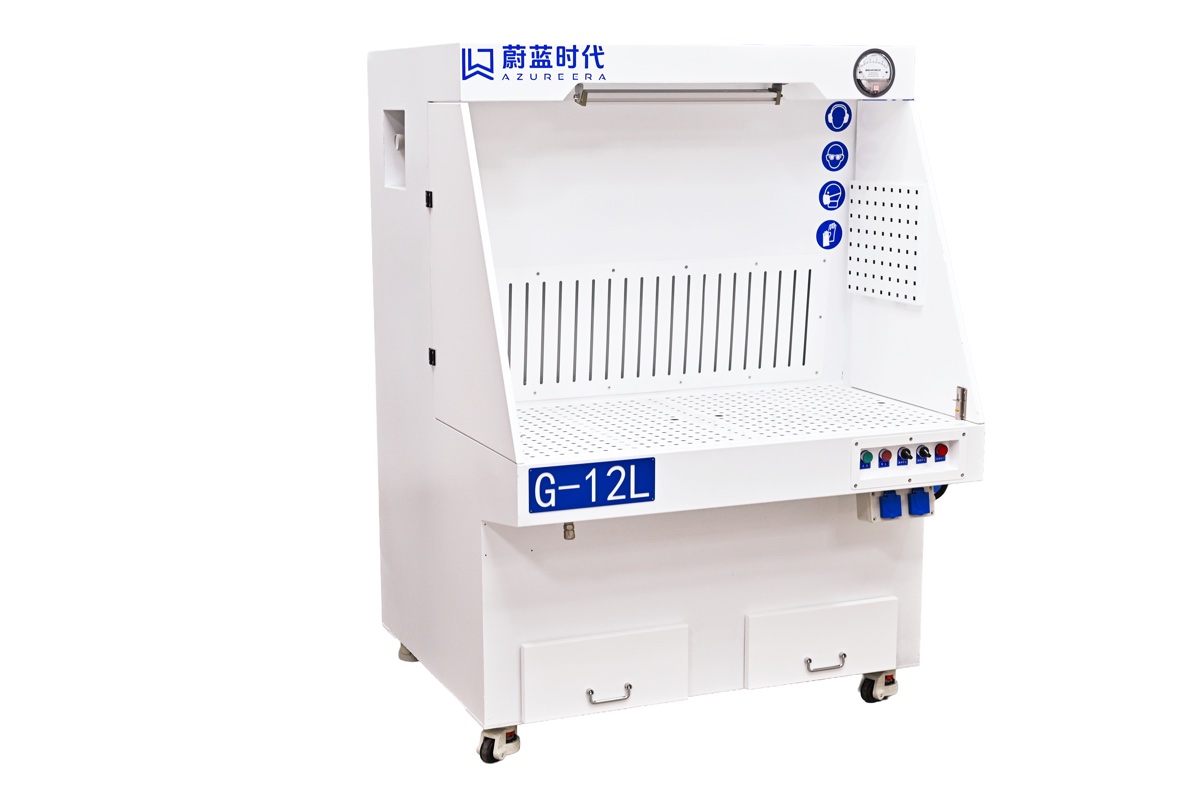

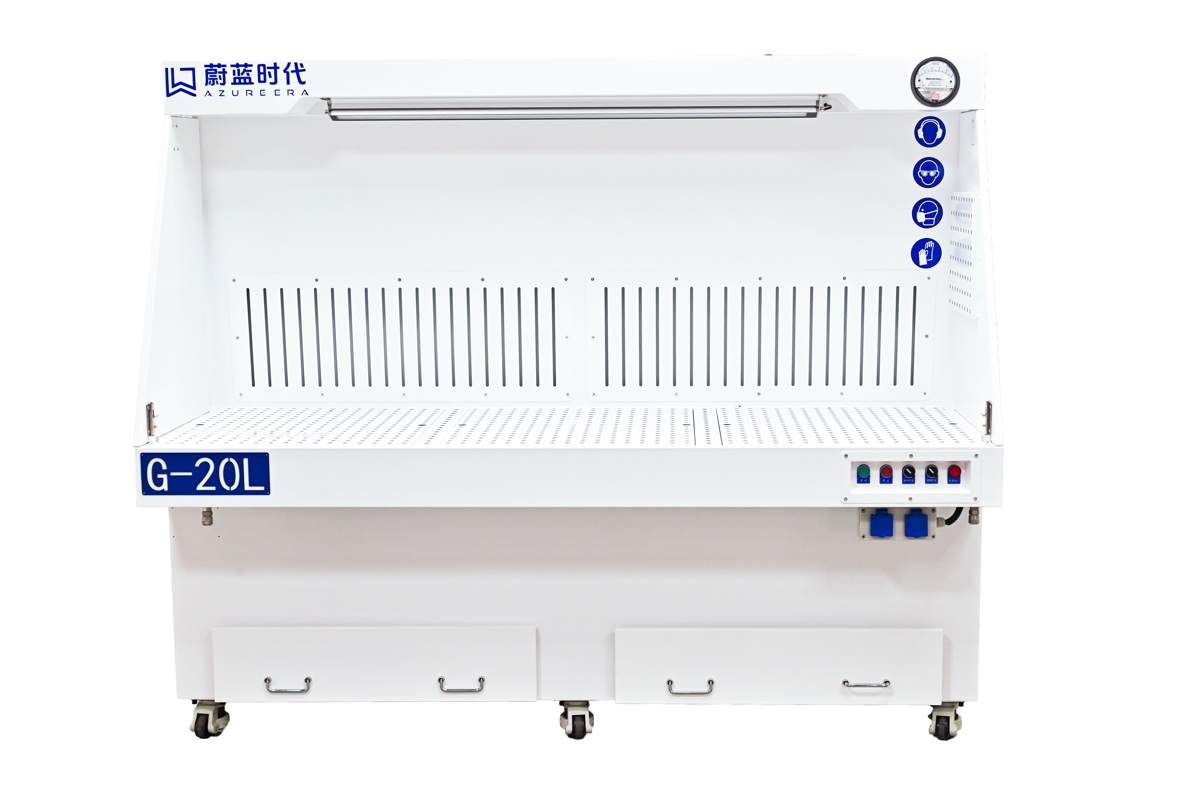

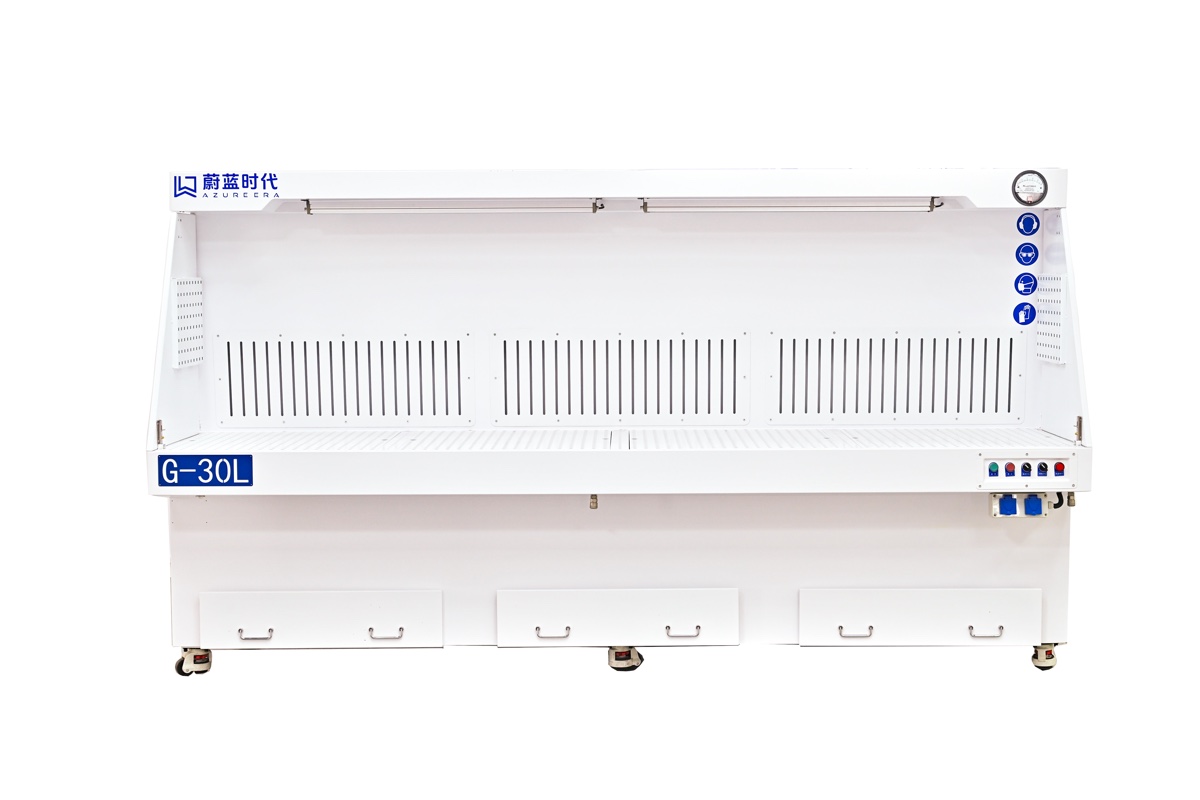

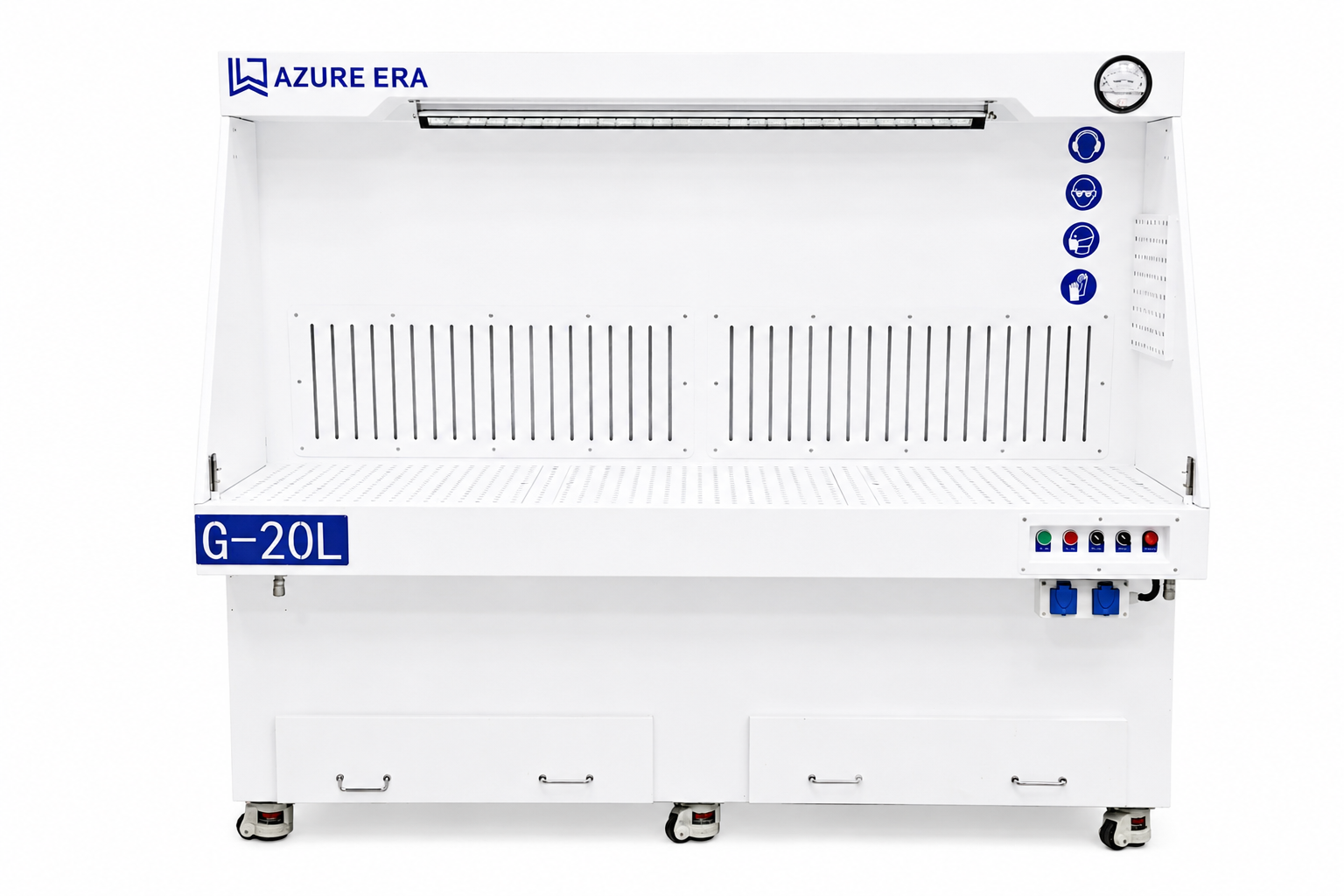

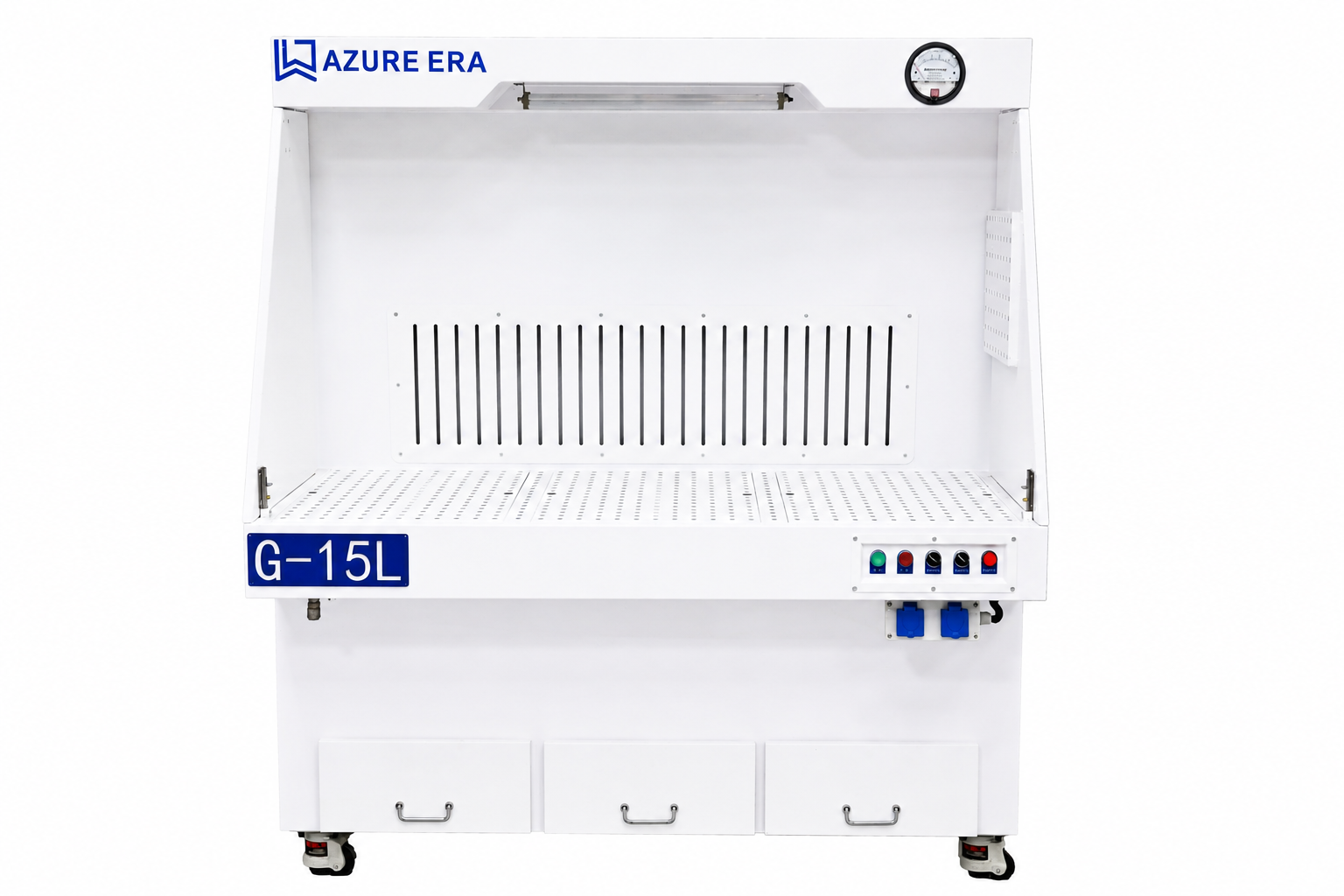

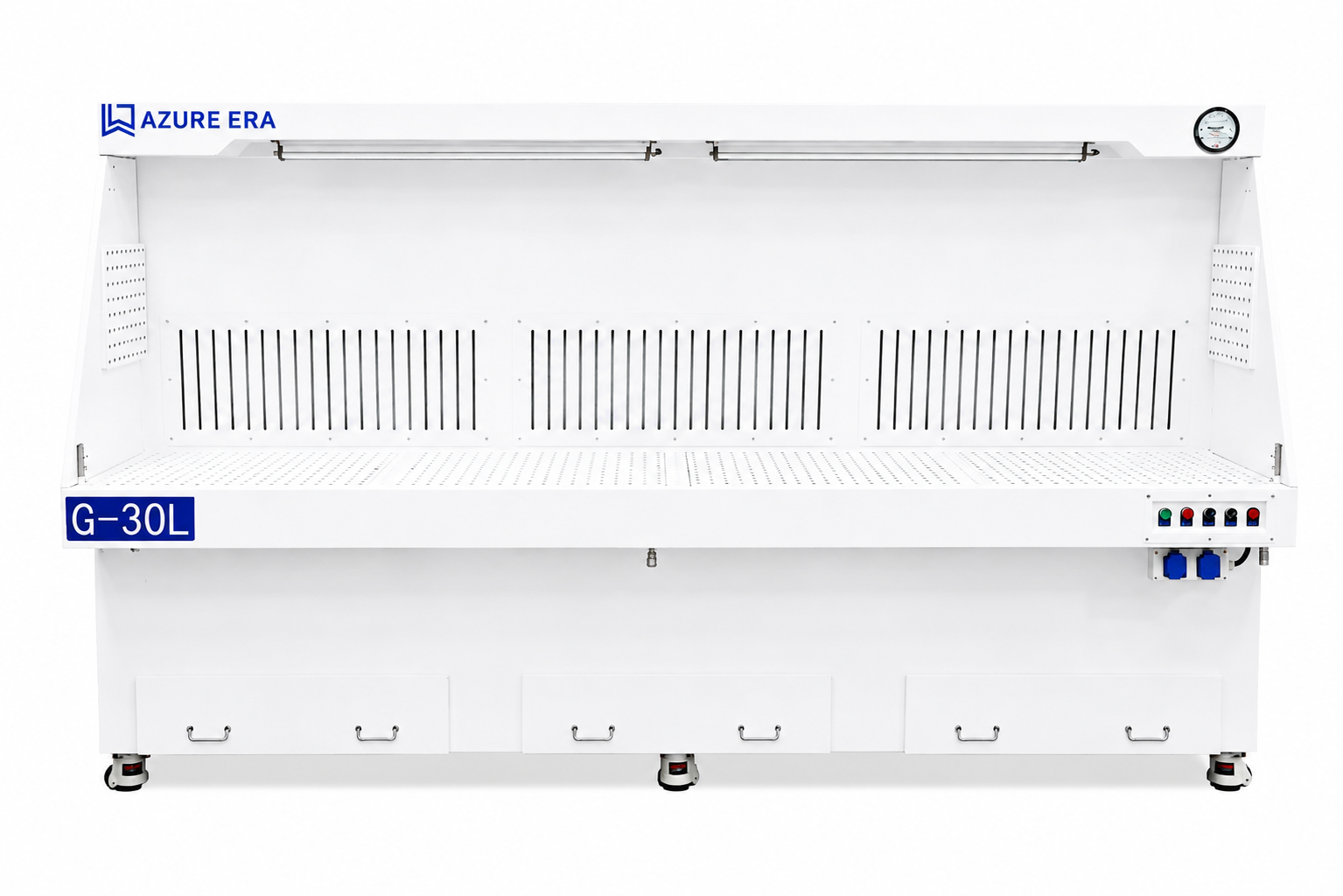

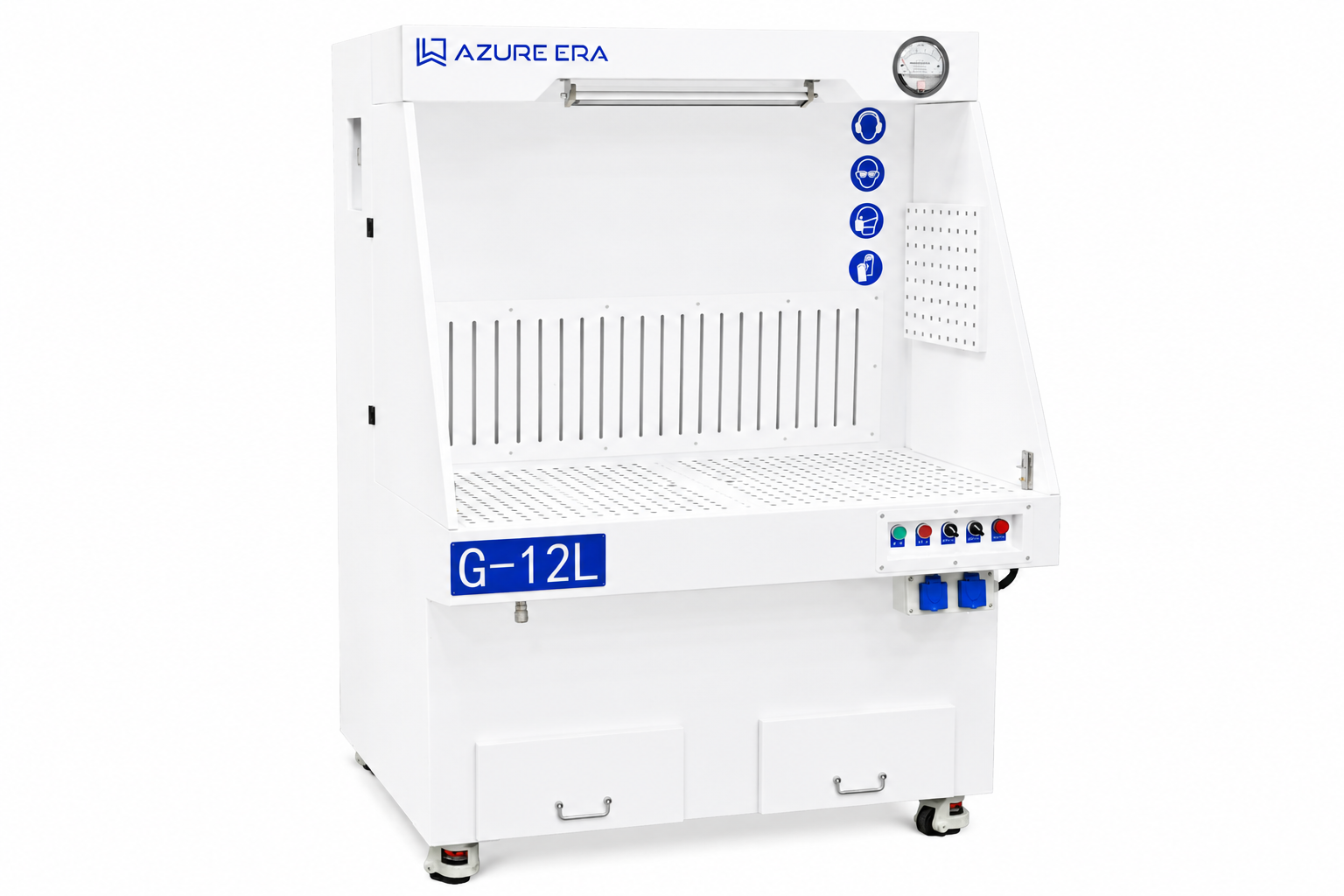

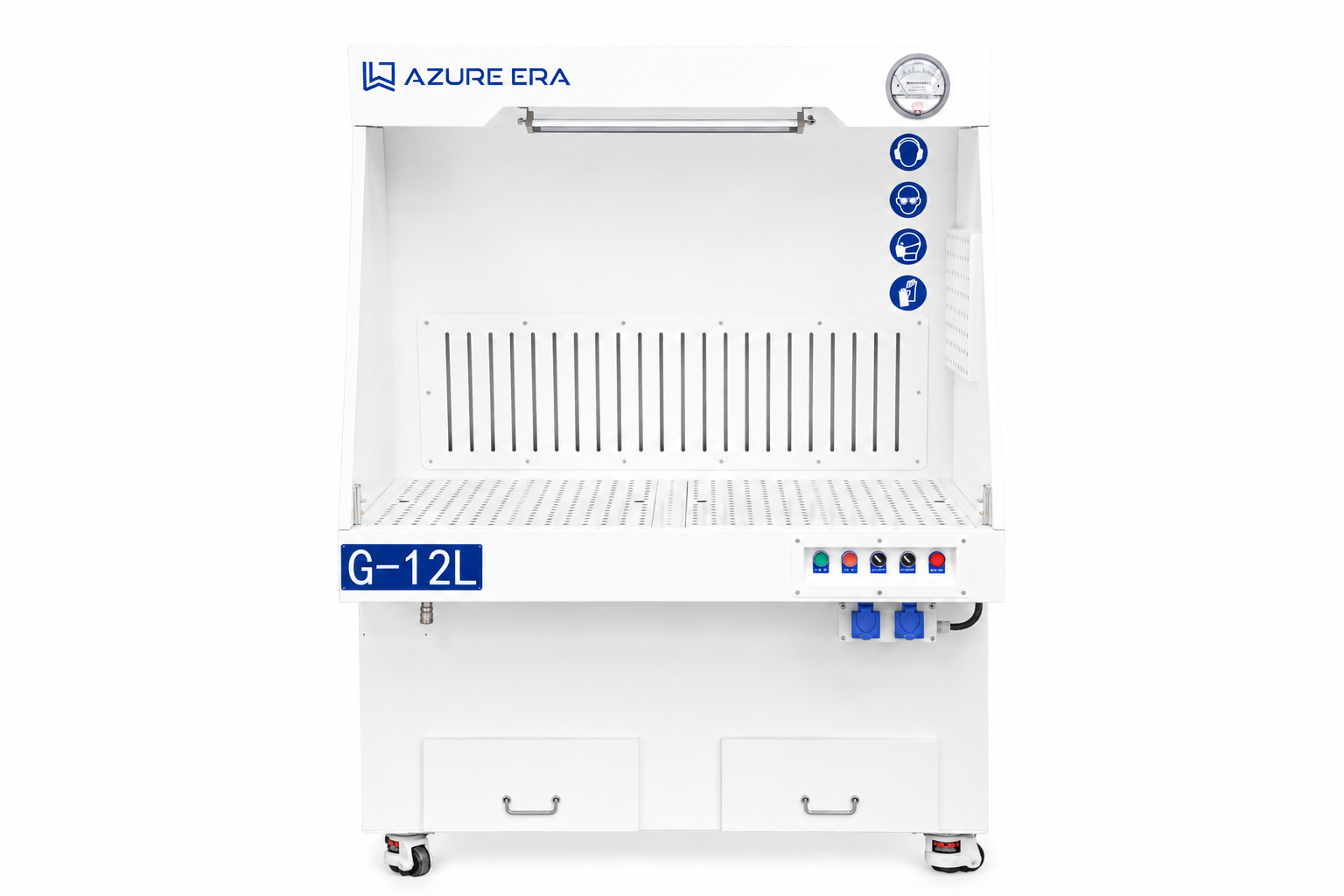

立式打磨除尘台Vertical Downdraft Workbench
独立式集尘工位，台面均风吸孔配合侧方斜面吸风口，上下协同无死角抽吸。集成防爆电源、压差表、LED 照明与抽屉集尘，单机完成全流程作业。Standalone downdraft station. Surface airflow holes plus side inclined hoods deliver zero-blind-spot capture. Integrated power box, pressure gauge, LED lighting and drawer collection.
产品视频 · 不同材质打磨实拍Product Video · Grinding across materials
产品参数Specifications
| 型号 / Model | G-12L | G-15L | G-20L | G-25L | G-30L |
|---|---|---|---|---|---|
| 电机功率Motor | 2.2 kW | 3.0 kW | 2.2 kW×2 | 2.2 kW×2 | 3.0 kW×2 |
| 电压Voltage | 380V 4PH — 50Hz380V 4PH — 50Hz | ||||
| 风量 (m³/h)Airflow | 3300-4000 | 3900-4600 | 6600-8000 | 6600-8000 | 7800-9200 |
| 风压 (Pa)Pressure | 1470-1300 | 2050-1860 | 2950-2600 | 2950-2600 | 4100-3720 |
| 滤筒数量Filters | 2 | 2 | 4 | 4 | 5 |
| 过滤面积 (m²)Filter Area | 9-12 | 9-12 | 22-30 | 22-30 | 30-38 |
| 噪声Noise | ≤75±5 dB≤75±5 dB | ||||
| 重量Weight | ≈180 kg | ≈250 kg | ≈300 kg | ≈400 kg | ≈500 kg |
| 台面 (mm)Surface | 1150×700 | 1450×700 | 1950×700 | 2450×700 | 2950×700 |
| 外形 (mm)Overall | 1200×1200×1600 | 1500×1200×1600 | 2000×1200×1600 | 2500×1200×1600 | 3000×1200×1600 |
产品特点Key Features
高效多级过滤Multi-stage Filtration
捕获 0.3μm 以上颗粒，过滤效率高达 99.9%。Captures particles above 0.3μm at up to 99.9% efficiency.
脉冲自清洁Pulse Self-cleaning
智能脉冲反吹定时清理滤芯，持久保持通畅。Smart pulse blowback keeps the filter clear.
低噪声运行Low-noise Operation
优化风机与气流通道，噪声 ≤75±5dB。Optimized fan keeps noise under ≤75±5dB.
防火防爆安全Fire & Ex Safety
火花探测、阻燃滤芯、防爆电机。Spark detection, flame-retardant filter, ex-proof motor.
大容量集尘High-capacity Collection
抽屉 / 集尘斗大容量，清灰快捷无扬尘。Large drawers for fast, dust-free emptying.
坚固工业用料Robust Construction
优质冷轧钢板，钣金工艺考究，经久耐用。Premium cold-rolled steel, precise sheet metal.
应用行业Application Industries
设备细节Engineering Details
电控系统Electrical Control
可编程脉冲控制仪，接线整洁规范。Programmable pulse controller, tidy wiring.
压差监测表Pressure Gauge
实时显示滤筒压差，精准判断清灰时机。Live filter pressure for cleaning timing.
集灰抽屉Collection Drawers
大容量抽拉式集尘屉，清灰无扬尘。Large pull-out drawers, dust-free emptying.
LED 照明LED Lighting
明亮柔和无频闪，防爆外壳。Bright flicker-free LED, ex-proof housing.
福马脚轮Leveling Casters
日本福马脚轮，移动定位自由切换。Japanese Fukuma casters, move or lock.
钣金与合页Sheet Metal
冷轧钢板折弯，重型合页结实耐用。Folded steel with heavy-duty hinges.
一体操作面板Control Panel
电机/清灰/照明一键启停。Motor/cleaning/light one-touch.
PTFE 滤芯PTFE Cartridge
东丽覆膜，光滑不粘粉易清灰。Toray-coated, non-stick, easy clean.
对 G-L 感兴趣？Interested in G-L?
告诉我们您的工况，24 小时内回复报价与选型建议。Tell us your process — quote & sizing within 24h.
